TranSys™ DX Elevators

KONE provides not just passenger elevators but also freight elevators solutions for special loading requirements and for carrying goods. With built-in connectivity for improved goods and passenger flows, the durable KONE TranSys™ DX redefines what an elevator for freight and passenger transportation can be.

Powered by the compact, energy-efficient KONE EcoDisc® hoisting motor, the KONE TranSys DX freight elevator and passenger elevator offers exceptional lifting power and performance while saving valuable space in your building by completely removing the need for a machine room. It is the perfect elevator for hospital buildings.

Key features – KONE TranSys™ DX

img_kaari-guycop-HR_360x535
  • Built-in connectivity – Future-proof your building and make your freight elevator even smarter with new service elevator features enabled and operated by our cloud connectivity platform and based on KONE APIs.
  • Optimized productivity during construction – Finish your building project more quickly with construction time use solutions that safely speed up the flow of people and materials on site.
  • Best-in-class eco-efficiency – Save energy and cut your building’s carbon footprint with a machine room-less elevator that offers eco-efficient hoisting, high-efficiency regenerative drive, long-lasting LED lighting, and energy-saving standby operation.
  • A lasting impression – Create a unique elevator experience for staff and visitors with a durable, spacious, and comfortable service elevator that can handle the toughest challenges. Customize your design with our new material, lighting, and signalization options.
  • Compliance you can rely on – Enhance your freight elevator with solutions that ensure compliance with various codes and regulations, including accessibility, vandal-resistance, and operation during a fire.

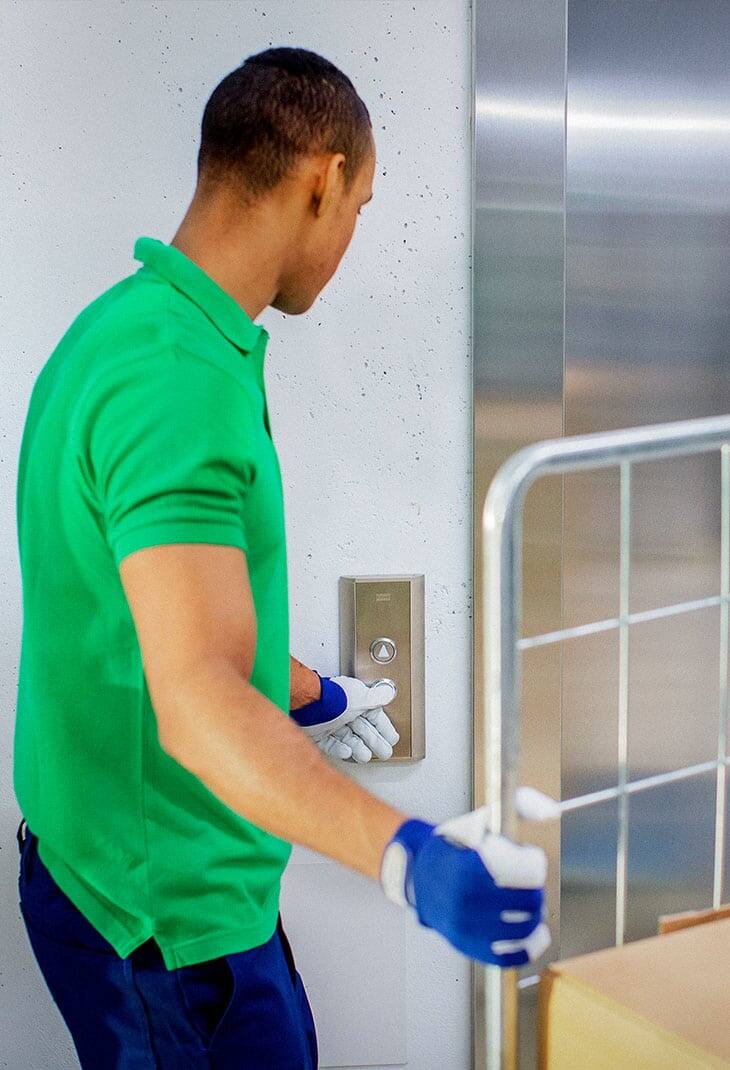

  • Easy loading and unloading – A goods elevator with wide-opening doors and highly accurate leveling, plus a high sill load that prevents heavy loads from unbalancing the service elevator. With connectivity built in, staff moving heavy loads can optimize their route by calling the goods elevator remotely.

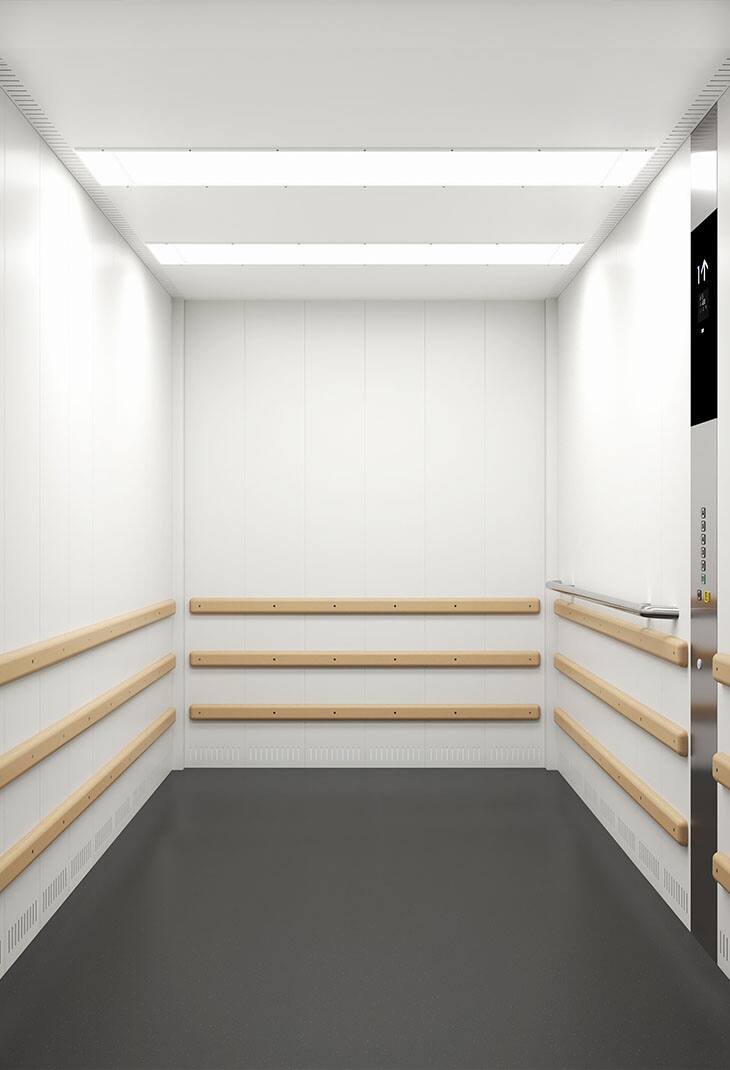

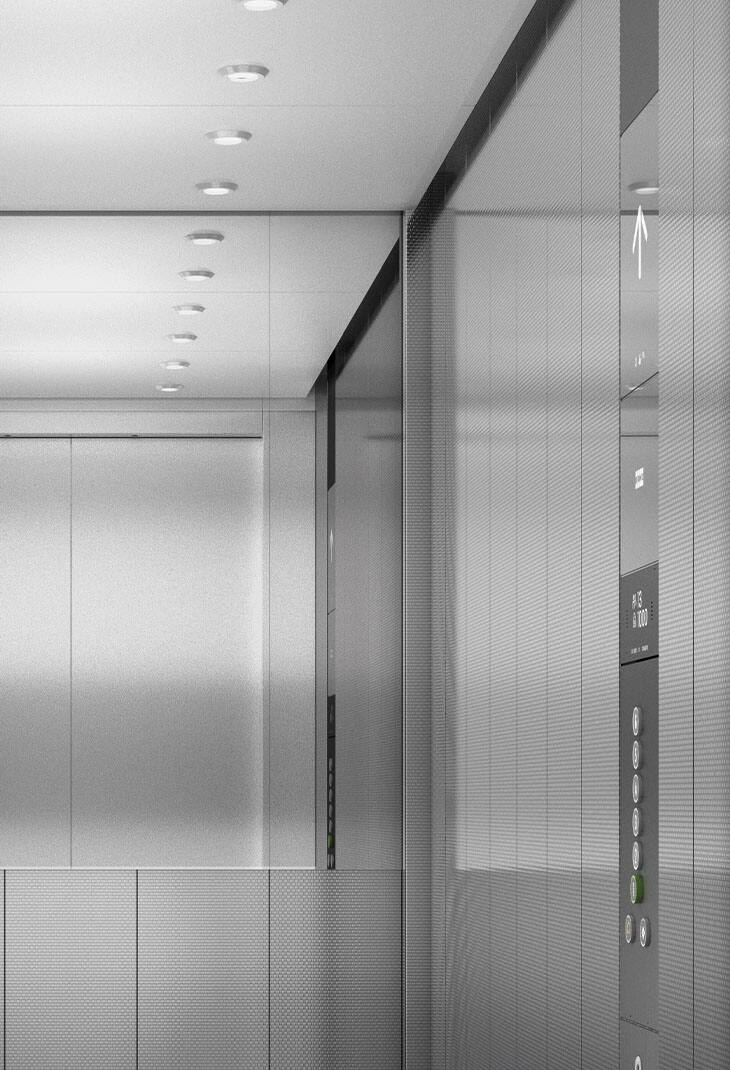

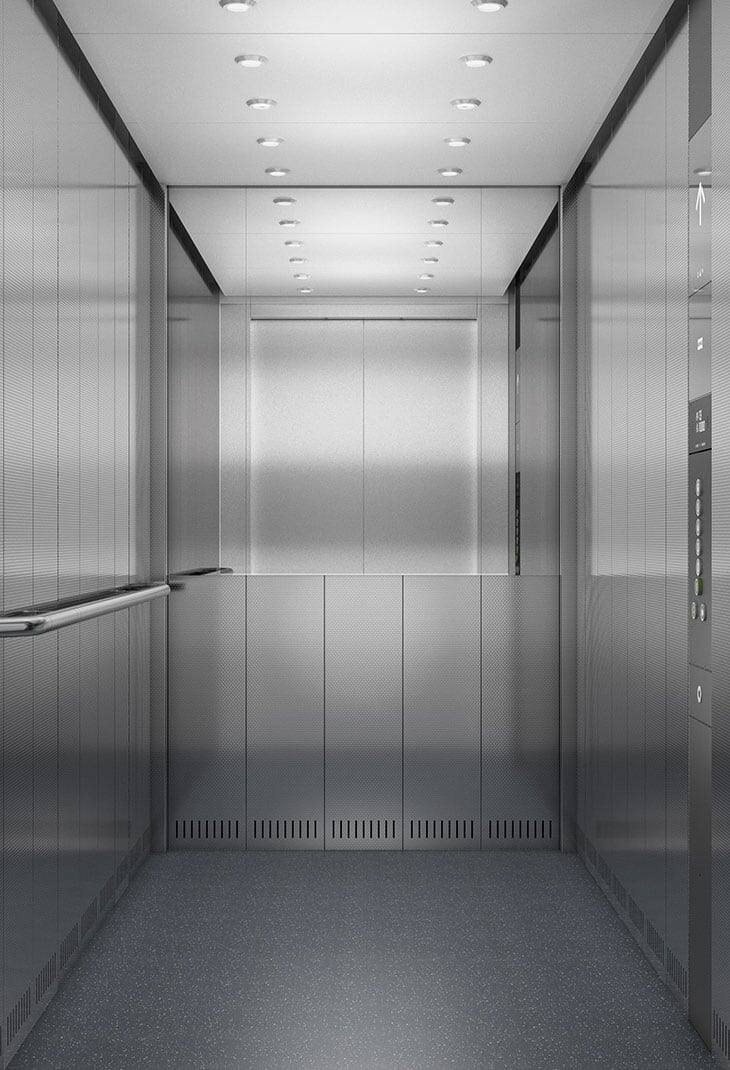

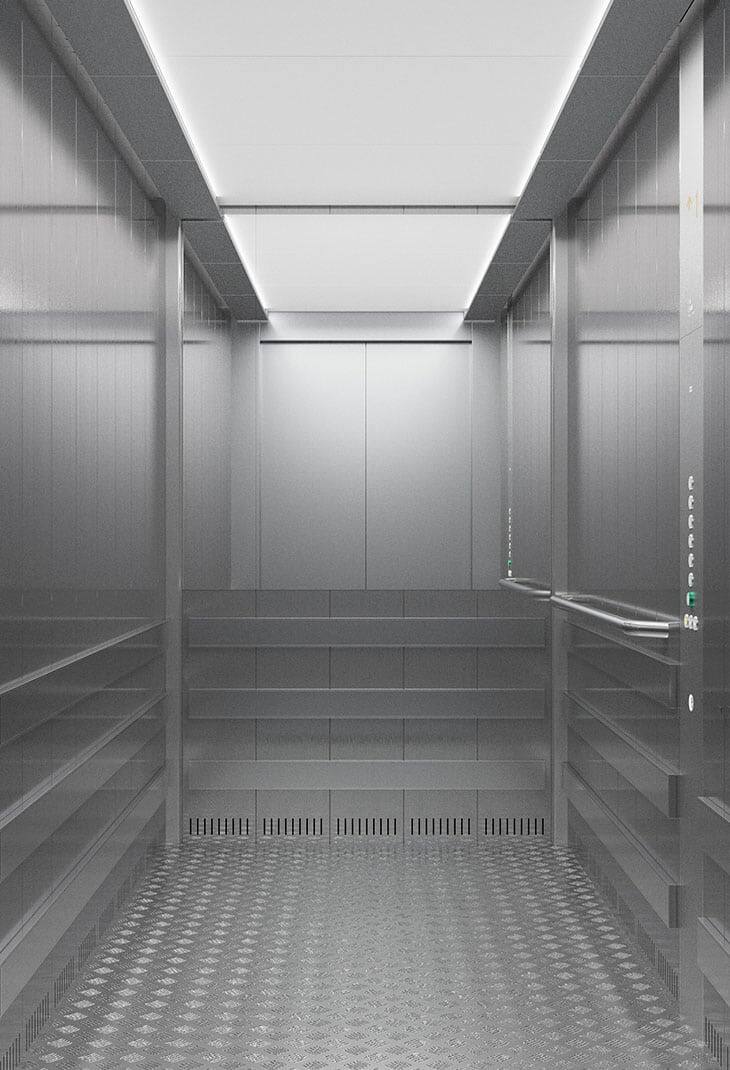

TranSys™ DX freight elevator and passenger elevator solutions

KONE can help you plan and build the freight elevator with your specific requirements, including loading capacity for shopping centres, warehouses, airports, or other large industrial buildings. There are two types of durable elevators on hand to choose from: a freight elevator designed specifically for goods loading and transportation and a passenger elevator for carrying both goods and passengers.

SOLUTIONDESCRIPTIONMACHINE ROOMMAX. TRAVELMAX. SPEEDMAX. LOAD / PERSONSMAX. GROUP SIZE
KONE TranSys DXPowerful durable machine room-less goods elevator with connectivity for enviroments with demanding goods flow requirements.No40 m or 12 floors1.6 m/s5,000kg / up to 53 persons4
KONE TranSys DX Passenger
Durable machine room-less connected passenger elevator for high-volume people flow in retail, industrial, and medical facilities, as well as offices and airports.No40 m or 12 floors1.0 m/s2,500kg /up to 33 persons4

Freight Elevator - Lift Industrial : Transys DX

Freight Elevator - Lift Industrial : Transys DX

backimg_dx-lander-design_1440X500

Plan and design your elevator today

KONE Car Designer

With our digital design tool you can create your own unique elevator car interior by combining materials, lighting, and accessories – and then bring your vision to life with 3D modelling.

Freight Elevator - Lift Industrial : Transys DX

Freight Elevator - Lift Industrial : Transys DX

Your partner for smart, sustainable building

img_ctu-material_668x376

BUILD FASTER

Our construction time use solutions increase productivity and help you complete your building project more quickly by helping people and materials to move around the site safely and efficiently – meaning your development can start generating a profit sooner.

img_sustain-trusted-partner_668x376

BUILD GREENER

Our elevators use sustainable materials and include a wide range of energy-efficiency enhancements, helping you to obtain green building certifications such as LEED and BREEAM.

img_sustainability-building_668x376

BUILD SUSTAINABLY

Our solutions and services help you to achieve your eco-efficiency goals during every phase of the building life cycle, from design and construction to maintenance and modernization.

Related topics

img_KONE DX Monospace - related topis - codes and standards_668x376

Codes and standards

We offer a range of solutions to ensure compliance with various codes and regulations relating to elevators, including accessibility, vandal-resistance, and operation during a fire. All our solutions comply with the EN81-20 and EN81-50 European safety standards for elevator design and manufacture.

Other KONE DX elevators

KONE MonoSpace® DX

Versatile machine room-less passenger elevator for low and mid-rise residential and commercial buildings. The KONE MonoSpace, with a maximum carry load of 33 people, comes in a range of materials, signalisation and control systems, enabling you to customise specifications to enhance your residential and commercial buildings.

  • MAX. TRAVEL 90 m
  • MAX. LOAD 33 persons
  • MAX. SPEED 3.0 m/s

KONE MiniSpace™ DX

High-speed passenger elevator with compact machine room for high-rise buildings. The KONE MiniSpace offers the perfect solution for a high-speed elevator, improving people flow making users everyday life easier.

  • MAX. TRAVEL 210 m
  • MAX. LOAD 26 persons
  • MAX. SPEED 4.0 m/s
